12-channel professional rackmixer
6 XLR inputs with D & M Professional HDHQ microphone preamplifiers
3-band equalizer
6 mono RCA inputs (3 stereo)
Microphone monitor output with 6.3 mm jacks
Balanced XLR line outputs
6.3 mm mono jack output
230V and 24V power inputs
Priority circuit for microphone 1
Rack mountable
Dimensions: 483 x 224 x 45 mm, 1 U
Weight: 2.9 kg

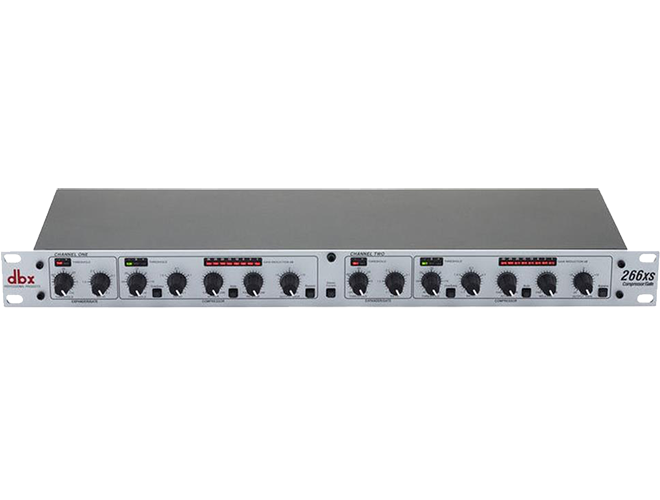

ADBX 266xS Audio Processor
Compressor / Gate / Limiter
AKP P120 Condenser Microphone
Professional dynamic vocal microphone with supercardioid Polar pattern Audio frequency bandwidth 70 to 20000 Hz Sensitivity 2.6 mV/Pa Electrical impedance 600 Ohms Recommended load impedance 2000 Ohms
Directional characteristic: Supercardioid
Frequency range: 70 to 20000 Hz
Maximum Sound Pressure Level (SPL): 156 dB
Impedance: 600 Ohms
Sensitivity: 2.6 mV/Pa
Varimotion laminated diaphragm
Elastic capsule suspension for minimal handling noise
Black housing
Weight: 340 g
Includes bag and clamp

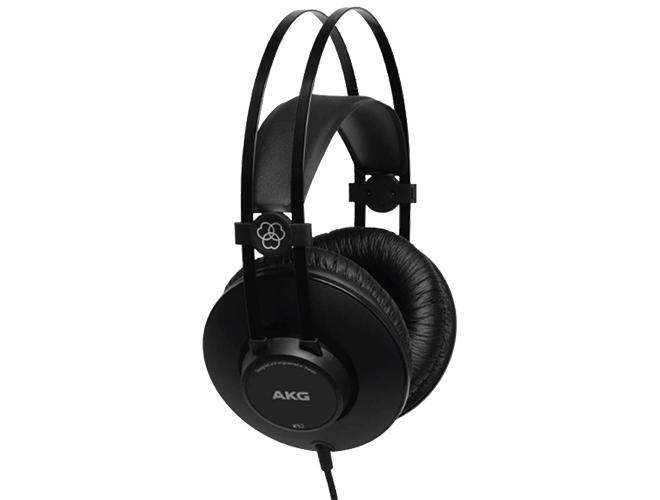

AKG K52 Headphone
Headphones
Closed
Circumaural
Impedance: 32 Ohm
Sensitivity: 110 dB SPL/V
Frequency Range: 18-20000 Hz
Max. input level: 200 mW
2.5 m cable with 3.5 mm jack and 6.3 mm adapter
Weight: 200 g
